iTAC.smart.ReceivingDevice
The recording of manufacturers’ materials information, right down to the smallest packaging unit, is the first step in a logistics process chain and therefore the basis for consistent material logistics, quality assurance and traceability. The innovative incoming goods solution iTAC.smart.ReceivingDevice assists you in ensuring a smooth process throughout your entire production, right from the start.
Smart.ReceivingDevice

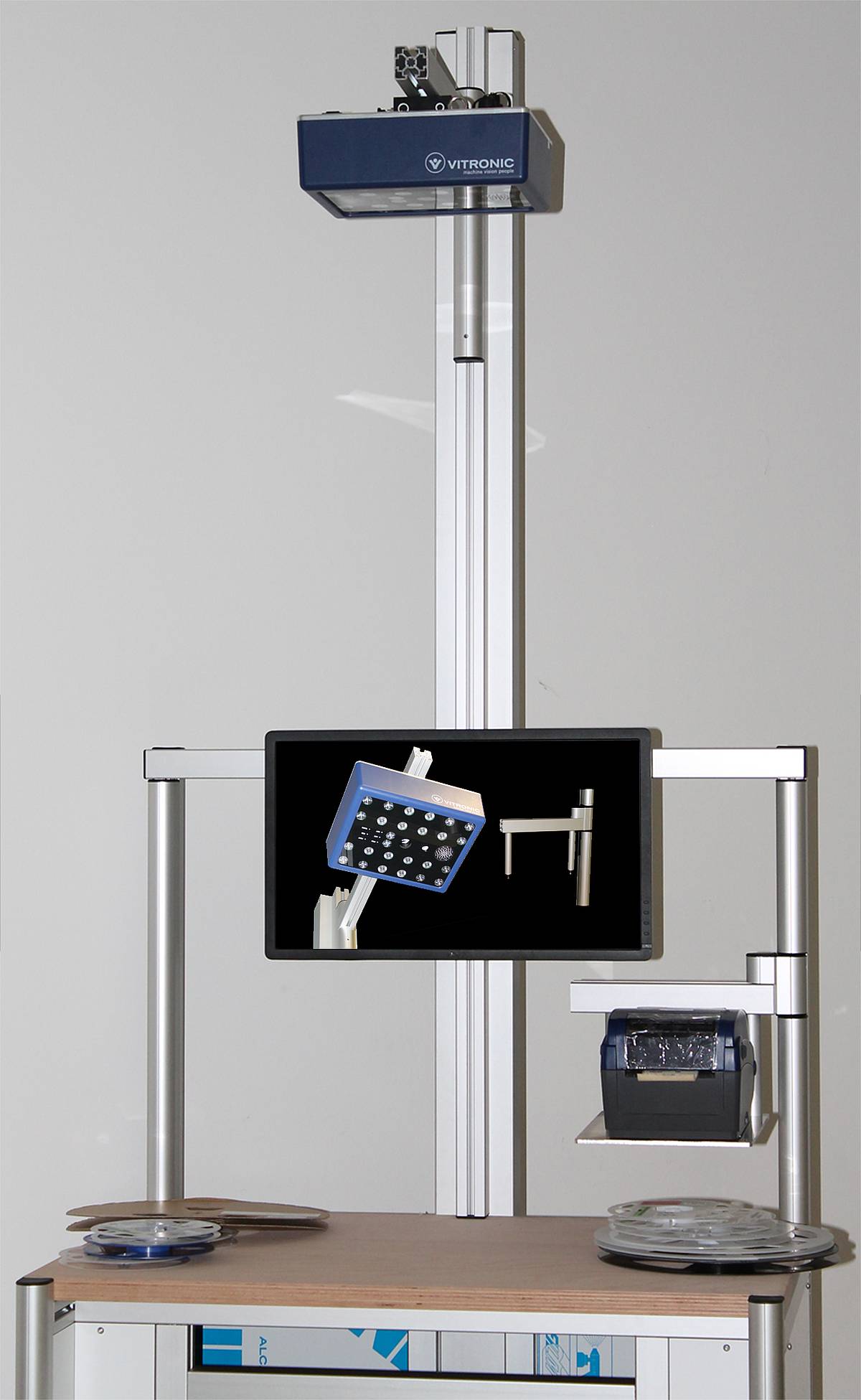

The smart.ReceivingDevice of iTAC has a barcode printer and camera-based Auto ID system which can read all standard barcodes (1D codes) and 2D codes without a problem.
The material data recorded by the device can be transferred to the customer's ERP system via the standardized ERP interfaces of the iTAC.MOM.Suite. This means that goods receipts do not have to be recorded twice - once in the ERP system and additionally in the iTAC.MOM.Suite.
In conjunction with the smart.ReceivingClient that is geared to production-related data recording, the smart.ReceivingDevice represents an integral incoming goods solution.
Thanks to the AOI technology used in the iTAC.smart.ReceivingDevice, it can even read badly printed or damaged codes from the material label. An image is always saved and displayed as proof of a successful read operation.
To improve or optimize the read quality, the camera takes several images which are all used to determine the quality of the label. The device's technological features enable a longer life cycle and almost maintenance-free operation of the iTAC.smart.ReceivingDevice.
Sensor Unit | Decoding Unit | |
---|---|---|
Dimensions (W/D/H) | 315 mm x 250 mm x 137 mm | 305 mm x 288 mm x 131 mm |
Weight | < 4 kg | 7 kg |
Mounting | No tools needed | Can be screw mounted |
Power supply | 115 VAC to 230 VAC (50 Hz to 60 Hz) | 115 VAC to 230 VAC (50 Hz to 60 Hz) |
Operating temperature | 0°C to 40°C | 0°C to 40°C |
Storage temperature | -10°C to 60°C | -10°C to 60°C |
Humidity | 10% - 90%, non-condensing | 10% to 90%, non condensing |
Protection class | IP54 | IP50, industrial housing |
Certification | RoHS, CE, FCC | RoHS, CE, FCC |
Technical specifications
The smart.ReceivingDevice of iTAC with its innovative AOI technology is fully equipped to assist manufacturers as an comprehensive incoming goods solution.
Both the included barcode printer as well as the camera-based barcode reader are highly performant and are play an important role as part of the production cycle.
Due to the technological design, the solution enables a longer life cycle and virtually maintenance-free operations.
In combination with the smart.ReceivingClient, which is a freely configurable, standardised material label generator, the solution offers a special added value for matters of traceability.
Data on the manufacturer or supplier-specific material label is automatically recognised and classified with the smart.ReceivingClient in the reading process on the basis of the master and configuration data in the iTAC.MOM.Suite’s database.
Benefits
- Supports different manufacturer or supplier-specific label types
- No duplicate MOM and ERP incoming goods process
- High availability of the solution as a result of iTAC.ARTES middleware technology
- High resolution camera with excellent image quality
- Fast and precise image processing
- Practically no maintenance required
Do you need more details?
Contact us for further information about the iTAC.smart.ReceivingDevice and you will hear from our sales team in no time.
